My bike has mounting holes.

You need the screws that come with the lock and a 4 mm hex key.

1. 01

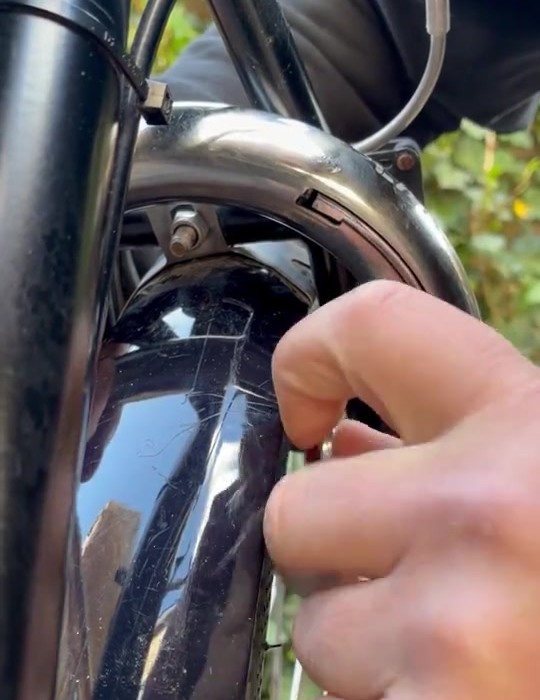

   Line it up.

   Hold the lock against the mounting holes. Choose the bracket slots that leave room above the tyre.

   Enlarge ↗
2. 02

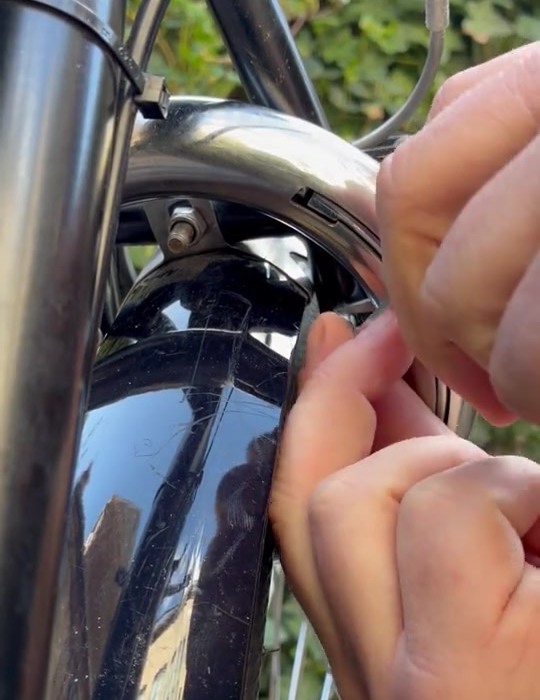

   Put in the screws.

   Put the supplied screws through the brackets and into the frame.

   Enlarge ↗
3. 03

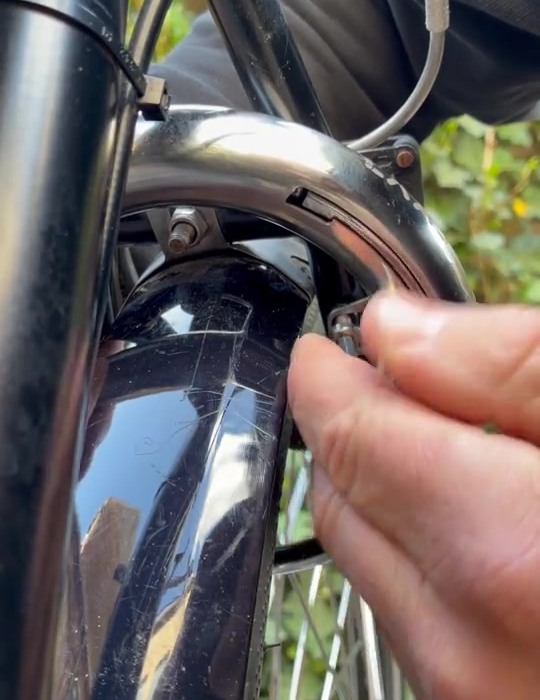

   Tighten and check.

   Centre the lock and tighten the screws with a 4 mm hex key. Check that the lock clears the tire.

   Enlarge ↗
